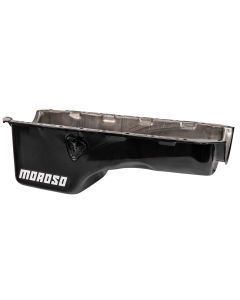

Street/Strip Oil Pan; 5 Qt.; Wet Sump; Depth-7.75 in.; Incl. Mag. Drain Plug; Chevy Big Block; Steel, Black Powder Coat
- Steel, Wet Sump, 5 Quart Capacity, 7-3/4" Deep
- Engine Application: Stock Replacement for GM Stock 2 or 4-Bolt Main Only Blocks
- Fits: Most Chassis w/Mark IV Engines
- Clears 4.0" stroke with most steel rods
- Anti-slosh internal baffle
- Uses O.E.M. Dipstick/Grommet
- Black powder coat finish by Moroso Powder Coating
Manufacturer-listed related parts and options:
Part # RECOMMENDED PICKUPS
24448 Fits: Moroso BBC Race Pump Nos. 22149, 22150, 22159, 22160 and 22162 or M77/M77HV style pump
Part # OIL PUMP/PICKUP PACKAGE
22195 Moroso High-Volume Package
Part # AVAILABLE OIL PAN OPTIONS
23030 Windage Tray (may require some modification)
23010 Oil Pan Baffle
25830 Crank Scraper
38360 Oil Pan Bullet Nose Stud Kit, BBC and Pontiac V8
38560 Self-Locking Oil Pan Bolts, BBC and Pontiac V8
93153 Oil Pan Gasket, One Piece Design, Steel Reinforced, BBC Mark 4, notched for stroker cranks
