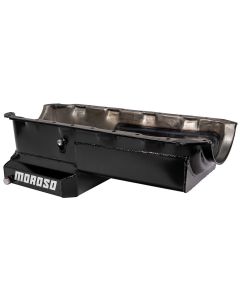

Stroker Oil Pan; 6 Qt.; Wet Sump; Depth-8in.; Trapdoor Baffling; Incl. Magnetic Drain Plug; Chevy Big Block; Steel, Black Powder Coat
- Steel, Wet Sump, 6 Quart Capacity, 8" Deep
- Engine Application: Mark IV style (except Gen V and Gen VI)
- Fits: Most chassis (may require cross-member modification)
- Kicked-out sump
- Trap door baffling for improved oil control
- Modified front sump to accept larger stroke
- Clears 4.75" stroke with most steel rods and 4.5" stroke with most aluminum rods
- Compatible most starter/flywheel combinations
- Steel with black powder coat finish by Moroso Powder Coating
Manufacturer-listed related parts and options:
Part # RECOMMENDED PICKUPS
24440 Fits: Moroso BBC Race Pump Nos. 22149, 22150, 22159, 22160, 22162 or M77/M77HV style pump
24441* Fits: Moroso BBC Race Pump Nos.22149, 22150, 22159, 22160, 22162 or M77/M77HV style pump
24445 Fits: Stock Oil Pumps, Moroso BBC Race Pump Nos. 22149, 22150, 22159, 22160, 22162 or M77/M77HV style pump
Part # OIL PUMP/PICKUP PACKAGE
22175 Moroso Standard Volume Package
22185 Moroso High Volume Package
22186* Moroso High Volume Package/Front Style Offset Pickup
22163 Moroso Billet Aluminum Oil Pump, BBC, High Volume
22164 Moroso Billet Aluminum Oil Pump, BBC, Standard Volume
*Offset to middle of sump for more consistent oil pressure under braking
Part # AVAILABLE OIL PAN OPTIONS
23030 Windage Tray
23010 Oil Pan Baffle
25830 Crank Scraper
25970 Universal Dipstick Kit
25971 Universal Dipstick Kit, Braided Stainless Flex Tube
25973 Universal Dipstick Kit, Twist Lock
38360 Oil Pan Bullet Nose Stud Kit, BBC and Pontiac V8
38560 Self-Locking Oil Pan Bolts, BBC & Pontiac V8
93153 Oil Pan Gasket, One Piece Design, Steel Reinforced, BBC Mark 4, notched for stroker cranks
