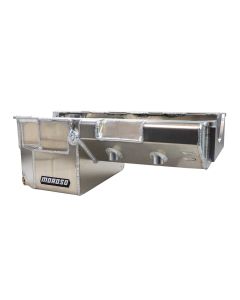

Oil Pan, BBC Gen Vi, Double Power Kick Outs, Motor Mount Notch, 8 In Deep
Oil Pan, BBC Gen V, Gen VI, Double Power Kick Outs, COPO 2016- up Camaro, has notch for COPO engine mount; 7 Qt.; Internal Wet Sump Design; Depth-8 in.; Incl. Magnetic Drain Plug; ; Aluminum;
- Aluminum, Wet Sump, 7 Quart Capacity w/ High Volume Pump, 8" Deep
- Engine Application: Gen V and Gen VI
- Fits: COPO Camaro ’16-up and rear sump applications (check measurements)
- Fully fabricated aluminum with billet end seals to ensure consistent sealing surface to billet front covers and
- rear main caps
- Double kick-out design ensures up to 4.75 stroke with aluminum rods, wide main cap clearance and
- maximum horsepower
- Has notch for COPO Camaro '16-up engine mount
- Solid louvered windage tray w/main cap partitions for maximum power and oil control
- For use with 168-tooth flywheel combination
- Sump design works with Moroso spur gear billet oil pumps
- Includes two O-ring magnetic drain plugs
Manufacturer-listed related parts and options:
Part # RECOMMENDED PICKUPS
24440 Fits: Moroso BBC Race Pump Nos. 22149, 22150, 22159, 22160, 22162 or M77/M77HV style pump
24441* Fits: Moroso BBC Race Pump Nos. 22149, 22150, 22159, 22160, 22162 or M77/M77HV style pump
24445 Fits: Stock Oil Pumps, Moroso BBC Race Pump Nos. 22149, 22150, 22159, 22160, 22162 or M77/M77HV style pump
Part # OIL PUMP/PICKUP PACKAGE
22175 Moroso Standard Volume Package
22185 Moroso High Volume Package
22186* Moroso High Volume Package/Front Style Offset Pickup
22163 Moroso Billet Aluminum Oil Pump, BBC, High Volume
22164 Moroso Billet Aluminum Oil Pump, BBC, Standard Volume
22167 Moroso Billet Aluminum High Volume Oil Pump
*Offset to middle of sump for more consistent oil pressure under braking
Part # AVAILABLE OIL PAN OPTIONS
38361 Oil Pan Fastener Kit, BBC Race Pans
93154 Oil Pan Gasket, 1-piece design
