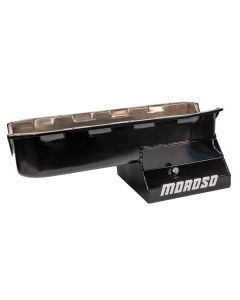

Oil Pan, SBC Pre-85, Dart Shp, 8.25 In. Deep Stroker T-Sump
Stroker Oil Pan; 7 Quart; Driver Side Dipstick; Trapdoor Baffling; Incl. PN[25970]; Chevy Small Block; Steel; Black Powder Coat finish
- Steel, Wet Sump, 7 Quart Capacity, 8-1/4" deep
- Engine Application: Pre-1985 with 2 piece rear main seal
- Fits: Most chassis (may require cross-member modification)
- Accepts strokes up to 4.125" with steel rods
- Fits 4 bolt Dart, GM and Merlin main caps
- Kicked-out sump
- Provision for Universal Dipstick Kits Nos. 25970, 25971 or 25973
- Compatible with most starter/flywheel combinations
Manufacturer-listed related parts and options:
Part # RECOMMENDED PICKUPS
24170 Fits: Moroso SBC Race Pump Nos. 22099, 22101 or M55 style pump
24181 Fits: Moroso SBC ¾” Inlet, M10552/M10555 Style Pumps
24350 Fits: Moroso SBC HV Race Pump Nos. 22109, 22111 or M55HV style pump
24320* Fits: Moroso BBC Race Pump No. 22150 or M77HV style pump
24360 Fits: M155HV/M10551 style pump
Part # OIL PUMP/PICKUP PACKAGE
22124 Moroso Standard Volume Package
22134 Moroso High Volume Package
22146* Moroso High Volume Package w/3/4” dia. Inlet
22139* Moroso High Volume with Anti-Cavitation Grooves Package
22171 Billet Aluminum Oil Pump
Part # AVAILABLE OIL PAN OPTIONS
23020 Windage Tray
23000 Oil Pan Baffle
25800 Crank Scraper
25970 Universal Dipstick Kit
25971 Universal Dipstick Kit, Braided Stainless Flex Tube
25973 Universal Dipstick Kit, Twist Lock
38551 Oil Pan Flange Head Bolts, SBC
93150 Oil Pan Gasket, Pre-’85 block with a 2 piece rear main seal
*with baffle modification
