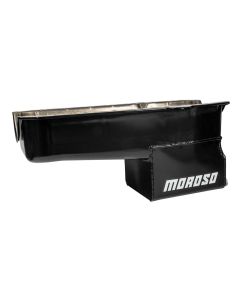

Oil Pan, SBC 80-85 Passenger Side Dip Stick, Dart Shp, 9.50 In. Deep

Deep Sump Oil Pan; Clears 3.8 in. Stroke With Steel Rods; Passenger Side Dipstick; 7 Quart; Trapdoor Baffling; Chevy Small Block; Steel; Black Powder Coat finish

• Steel, Wet Sump, 7 Quart Capacity, 9-1/2" deep
• Fits: Most Chassis (except 1962-'67 Chevy II, V8 Vega and Monza
• Accepts up to 4.125" stroke with steel rods
• Fits 4 bolt Dart, GM and Merlin main caps
• Trap door baffle for improved oil control
• Increases capacity which reduces oil temperature
• Compatible with most starter/flywheel combinations

Manufacturer-listed related parts and options:

Part # RECOMMENDED PICKUPS
24150 Fits: Stock Oil Pumps or Moroso SBC Race Pump Nos. 22099, 22101 or M55 style pump
24340 Fits: Moroso SBC HV Race Pump Nos. 22109, 22111 or M55 HV style pump
Part # AVAILABLE OIL PAN OPTION
23020 Windage Tray
23000 Oil Pan Baffle
25800 Crank Scraper
38851 Oil Pan Flange Head Bolts, SBC
93150 Oil Pan Gasket, Pre-’85 block with a 2 piece rear main seal
