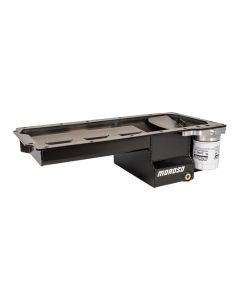

Oil Pan, Dart LS Next Gen 3 Skirted Block, Early F Body, Road Race Baffling

Oil Pan, Steel, Black Powder Coat, Dart LS Next Gen 3 Skirted Block, Early/Swap F-Body Race Baffled, Spin-On Oil Filter Adapter that Accepts 22mm thread Moroso No. 22463 or O.E.M. oil filter

• Steel, Wet Sump, 7 Quart Capacity
• Early F-Body/Swap
• Engine Application: Dart LS Next Gen 3 Skirted Block
• Fits: ’67-’92, ’10-’15 Camaro, ’68-’78 Nova, ’65-’72 Chevelle, ’53-’96 Corvette, ’78-’88 G-Body, and GM S10/S15 Two Wheel Blazer/Truck, Can also be used in additional applications; check dimensions for clearance
• Oil pan has a thick precision laser cut steel rail specifically designed for the LS Next Gen 3 Skirted Engine Block, fabricated steel sump with black powder coat
• Clears a 4.25” stroke and has a 7 Quart Capacity
• Features a race proven three trap door assembly and anti-slosh baffle that keeps oil contained in oil pump pickup area during road racing and drag racing
• Has a removable windage tray for horsepower savings and oil control, please note that engine block mounted windage trays are not needed and will interfere
• Includes a Billet Aluminum Spin-On Oil Filter Adapter that accepts a 22mm thread Moroso No. 22463 or O.E.M. oil filter
• Designed to be used with GM F-Body 98-02 dipstick tube GM Part No. 12628771 and dipstick GM Part No. 12551581

Manufacturer-listed related parts and options:

PART NO. RECOMMENDED PICKUP
24152 Fits: Moroso Dart Next LS Oil Pump No. 22118
PART NO. AVAILABLE OPTIONS
22118 Dart LS Next, LS SHP Oil Pump
22463 Oil Filter
24890 GM LS Oil Pump Flange Reinforcement
93152 Oil Pan Gasket, GM LS Series (Except LS7 & LS9)
38541 Oil Pan Stud Kit
71162 Dust Shield for Moroso & Aftermarket Oil Pans
97315 O-Ring, GM LS Oil Pump Pick Ups, 2 Pack
