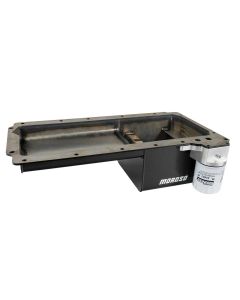

Oil Pan, GM LS, Swap, Rear Sump, Straight Sump, Spin-On Oil Filter Adapter
Oil Pan, Steel, Black Powder Coat, GM LS, Straight 6" Deep Sump
- Steel, Wet Sump, 5 Quart Capacity, 6" Deep
- Engine Application: GM LS Series
- Fits: Fits: LS Engine Conversions that require Rear Sump (Check Measurements)
- Oil pan has a thick precision laser cut steel rail with a durable fabricated steel sump plated with a clear zinc finish
- Fabricated, durable steel construction is more adaptable to add fittings, change finishes and weighs less than cast aluminum construction
- Clears 4.25 stroke with most steel rods
- Front of the oil pan is 1.813 deep to the beginning of the 6 Deep, 8.107" Wide and 8.378" long sump
- Anti-climb baffle; magnetic drain plug and uses a stock dipstick
- Features a billet aluminum adapter that allows a 22mm thread Moroso No. 22463 or O.E.M. oil filter to be mounted in the stock location, no need to run a remote oil filter
- Fabricated steel with black powder coat finish by Moroso Powder Coating
- Included billet aluminum oil filter adapter has a 1/4" N.P.T. sensor port
Manufacturer-listed related parts and options:
Part # RECOMMENDED PICKUPS
24050 Fits: Stock or Moroso GM LS Oil Pump Nos. 22119, 22120, 22121 & 22122
Part # AVAILABLE OIL PAN OPTIONS
22119 Oil Pump, GM LS Standard Volume & Pressure
22120 Oil Pump GM LS Race, High Volume
22121 Oil Pump, GM LS High Volume & Pressure
22122 Oil Pump, GM LS Standard Volume/High Pressure
22463 Racing Oil Filter
23707 Spin-on Oil Filter Adapter, 90 Degree Remote
23711 Spin-on Oil Filter Adapter, Sideways Mount
23712 Spin-on Oil Filter Adapter
23713 Spin-on Oil Filter Adapter, External Input Inlet, Outbound Rail
24890 GM LS Oil Pump Flange Reinforcement
38541 Oil Pan Mounting Stud
71162 Dust Shield, GM LS
93152 Oil Pan Gasket, GM LS Series (Except LS7 & LS9)
97315 O-Ring, GM LS Oil Pump Pick Ups, 2 Pack
25030 Oil Galley Diverter, GM LS
