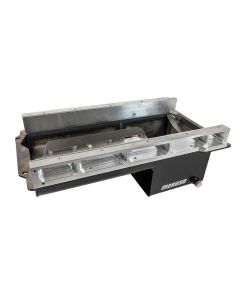

Oil Pan Kit, Steel, Black Powder Coat, DART LS, Windage Tray, Billet Alum. Spacers
- Steel, Wet Sump, 7 Quart Capacity, 6" deep, Baffled
- Engine Application: Dart LS Next Engine Blocks
- Fits: 1967-'92 Camaro, 1968-'78 Nova, 1965-'72 Chevelle, 1953-'96 Corvette, 1978-'88 G-Body, and GM S10-S15 Two Wheel Drive Blazer-Truck
- Kit includes Dart LS Next oil pan and Moroso Part No. 22934 Billet Aluminum Spacers with mounting hardware
- Oil pan has a 3/16" thick precision laser cut steel rail specifically designed for the LS Next Engine Block
- Features a trap door baffle and a removable windage tray for horsepower savings and oil control
- Has a 16 gauge steel sump to stand up to the toughest racing conditions
- Front of the oil pan is 2" deep to the beginning of the 6" deep sump
- The sump is 8-1/2" long and 8-5/8" wide
- Clears 4.125" stroke with most steel rods
- The included billet aluminum spacers, mount between the engine block and the oil pan with the supplied mounting hardware, sealing via the built in O-ring groove and requires a stock GM LS Gasket
- Billet aluminum spacers have mounting holes for A/C and P/S brackets
- Fabricated steel with black powder coat finish by Moroso Powder Coating
- Uses stock OEM LS dipstick
Manufacturer-listed related parts and options:
Part # RECOMMENDED PICKUPS
24144 Fits: Moroso Dart Next LS Oil Pump No. 22118
Part # AVAILABLE OIL PAN OPTIONS
22118 Dart LS Next, LS SHP Oil Pump
24890 GM LS Oil Pump Flange Reinforcement
93152 Oil Pan Gasket, GM LS Series (Except LS7 & LS9)
97315 O-Ring, GM LS Oil Pump Pick Ups, 2 Pack
