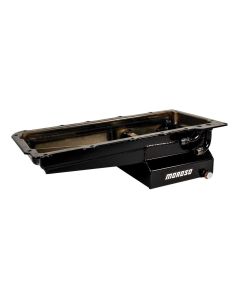

LSI Conversion Oil Pan, Deeper in the front to work with Part # 22941 & 22943 Windage Trays
- Wet Sump, 7 Quart Capacity, 6" Deep Angled Sump
- Engine Application: GM LS Series
- Fits: Fits: 1967-'92 Camaro, 1968-'78 Nova, 1965-'72 Chevelle, 1953-'96 Corvette, 1978-'88 G-Body and GM S-10/S-15 Two Wheel Drive Blazer/Truck. Can also be used in additional applications, check dimensions for clearance.
- Designed with a deeper front sump allowing the installation of a Windage Tray (No. 22941 & 22943 sold separately)
- Trap-door baffling for improved oil control
- Clears 4.25" stroke with most steel rods
- Two -10AN fitting for remote filter installation
- Fabricated steel with black powder coat finish by Moroso Powder Coating
- Use stock dipstick
Manufacturer-listed related parts and options:
Part # RECOMMENDED PICKUPS
24050 Fits: Stock or Moroso GM LS Oil Pump Nos. 22119, 22120, 22121 & 22122
Part # AVAILABLE OIL PAN OPTIONS
22119 Oil Pump, GM LS Standard Volume & Pressure
22120 Oil Pump GM LS, Race, High Volume
22121 Oil Pump, GM LS High Volume & Pressure
22122 Oil Pump, GM LS Standard Volume/High Pressure
22941 Windage Tray, GM Studs
22943 Windage Tray, ARP Studs
24890 GM LS Oil Pump Flange Reinforcement
38541 Oil Pan Stud Kit
71162 Dust Shield for Moroso and Aftermarket Oil Pans
93152 Oil Pan Gasket, One Piece Design, Steel Reinforced, GM LS Series (Except LS7 & LS9)
97315 O-Ring, GM LS Oil Pump Pick Ups, 2 Pack
25030 Oil Galley Diverter, GM LS
