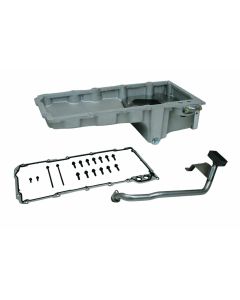

GM LS Conversion Cast Aluminum Oil Pan, for 1967-1969 Camaro, 1968-72 Nova, 1965-72 Chevelle, Fits Other Applications check Dimensions for clearance, Includes Heavy Duty High Flow Oil Pump Pick Up, Gasket, Hardware
- Aluminum, Wet Sump, 6 Quart Capacity, 5-3/4" deep
- Engine Application: GM LS Series
- Fits: LS Engine Conversions such as '55-'87 GM Cars & Trucks (except G-Body) that require a Rear Sump Oil Pan with a Spin-On Filter provision (Check Measurements)
- Based on consumer inquiries, this product is for the individual who prefers the O.E.M. look of a cast aluminum oil pan
- The oil pan is cast, then machined from aluminum
- Clears 4.25" of stroke with most steel rods
- Includes a removable, heavy duty, stainless steel anti-slosh baffle
- Features a heavy duty, high flow oil pump pickup
- Integral Spin-On oil filter provision with an O.E.M. oil cooler port that accepts a 22mm-1.5 thread Moroso Part No. 22463 or O.E.M. Spin-On oil filter
- Includes oil pan gasket, mounting bolts and nuts
- Uses stock dipstick
- The oil pan is cast then machined aluminum
- Clears 4.25” stroke with most steel rods
- Includes a removable, heavy duty, stainless steel anti-slosh baffle
- Features a heavy duty, high flow oil pump pick up
- Integral Spin-On oil filter adapter with a O.E.M. oil cooler port that accepts a 22 mm-1.5 thread Moroso Part No. 22463 or O.E.M. Spin-On oil filter
- Includes oil pan gasket, mounting studs and nuts
- Use stock dipstick
Manufacturer-listed related parts and options:
Part # AVAILABLE OIL PAN OPTIONS
22119 Oil Pump, GM LS Standard Volume & Pressure
22120 Oil Pump GM LS, Race
22121 Oil Pump, GM LS High Volume & Pressure
22122 Oil Pump, GM LS Standard Volume/High Pressure
24890 Oil Pump Flange Reinforcement
97315 O-Ring, GM LS Oil Pump Pick Ups, 2 Pack
25030 Oil Galley Diverter, GM LS
