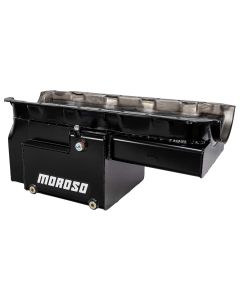

Oil Pan, BBC Mark IV, Marine Offshore Deep Sump
- 14 gauge steel with black powder coat finish by Moroso Powder Coating
- Passenger-side kick-out, marine baffling and removable anti-slosh tray for improved oil control
- 5" front depth, 10" deep, 14" long rear sump
- Marine baffling, also works well for Tractor Pulling and Mud Drag Trucks
- Removable anti-slosh baffle
- Clears 4.25" stroke with most steel rods and 4.090" stroke with most aluminum rods, core based
- Two ½" NPT drainbacks
- Pan mounted dipstick fitting
- Two 1/2" N.P.T. drain plugs
Manufacturer-listed related parts and options:
PART # RECOMMENDED PICKUP
24434 Oil Pump Pickup, BBC, Fits Moroso Part No. 20033 & 20034 Oil Pans and 22149, 22159, 22150, 22160 & 22162 or M77/M77HV style oil pumps
PART # AVAILABLE OPTIONS
22172 Oil Pump, Billet Aluminum, BBC, HV
25970 Universal Dipstick Kit
25971 Universal Dipstick Kit, Braided Stainless Flex Tube
25973 Universal Dipstick Kit, Twist Lock
38360 Oil Pan Bullet Nose Stud Kit, BBC and Pontiac V8
38560 Self-Locking Oil Pan Bolts, BBC & Pontiac V8
93154 Oil Pan Gasket, One Piece Design, Steel Reinforced, BBC Gen V & VI
