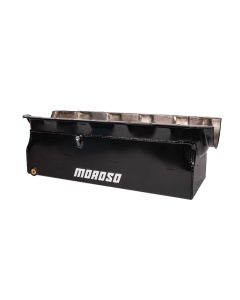

OIL PAN, BBC MARK IV, STRAIGHT BOX SUMP, WET SUMP, 11 QUART, 8" DEEP, STEEL. Black Powder Coat
- Core based pan; uses stock bolt pattern
- 8" deep box sump for Mark IV Big Block Chevrolet applications
- Features dual trap doors, rear anti-climb baffle and removable anti-slosh baffle for superior oil control in Marine, Mud Truck, or Tractor Pull applications
- Clears 4.75" stroke with most steel rods, 4.5" stroke with most aluminum rods
- 11 quart capacity (plus filter)
- O-Ring magnetic drain plug
- Steel with black powder coat finish by Moroso Powder Coating
- For use with 168 and 153-tooth flywheel combinations
Manufacturer-listed related parts and options:
24440 Oil Pickup, BBC, for Moroso 8" Pans
24441 Oil Pickup, BBC, Offset, for Moroso 8" Pans
24445 Oil Pickup, BBC Offset w/ Perforated Screen, Moroso 8" Pans
22186 Oil Pump and Pickup, High Volume, Offset Pickup, BBC
25970 Universal Dipstick
25971 Universal Dipstick, Braided Stainless Flex Tube
25973 Universal Dipstick, Twist Lock
93153 Oil Pan Gasket, One-Piece, BBC MK IV
22175 Oil Pump and Pickup, Standard Volume, BBC
22185 Oil Pump and Pickup, High Volume, BBC
22187 Oil Pump and Pickup, High Volume, w/ Windage Shield, BBC
22163 Billet Aluminum Oil Pump, High Volume, BBC
22164 Billet Aluminum Oil Pump, Standard Volume, BBC
38360 Self-Locking Oil Pan Bolts, BBC & Pontiac V8
