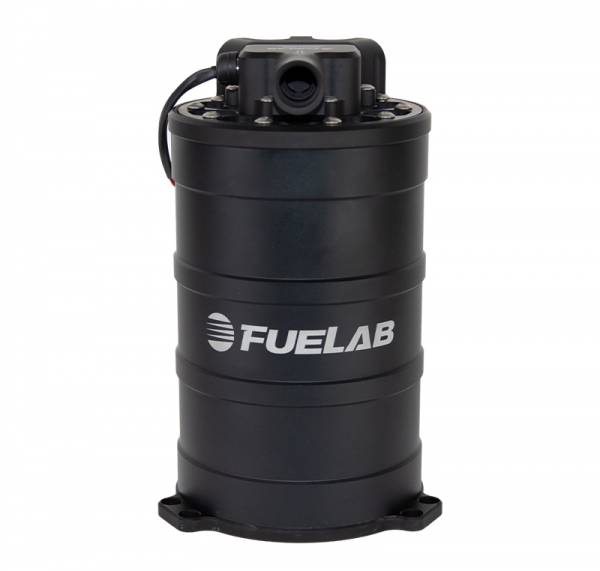

H/E Series 235mm Tall Fuel Surge Tank System 1250 HP Brushless Twin Screw Pump Speed Controllable FUELAB

2.1L Fuel Surge Tank System with Speed Controllable, Twin Screw DC Brushless Fuel Pump, 500lph

Product Features:

• Allows for high fuel flow output with little or no modifications to the OE fuel tank and module
• Prevents fuel sloshing by maintaining a ready volume of fuel
• 235mm Tall
• FST Rated volume: 2.1 L
• Single Twin Screw DC Brushless fuel pump included
• Rated to flow 500lph at 45psi, 125psi Max
• Integrated controller with PWM speed control
• Billet aluminum and O-ring Construction using -8AN Fuel Ports
• Compatible with Pump and Racing Gasoline, and E85
• Return line is required, returns excess fuel back to the vehicle fuel tank
• Optional FST Upgrade Accessory Kits Sold Separately
• Backed by a limited lifetime warranty

Pulse Width Modulation Compatibility (PWM)

• Compatible with most aftermarket ECU's with PWM output frequency
• Compatible from 100Hz to 5000Hz
• AEM
• ECU Masters
• Fueltech
• Haltech
• Holley
• Link Engine Management
• Megasquirt
