Drive Shaft Shop BMW 1995-1999 E36 M3 5-Speed 1-Piece Chromoly Driveshaft (4-Bolt rear flange)

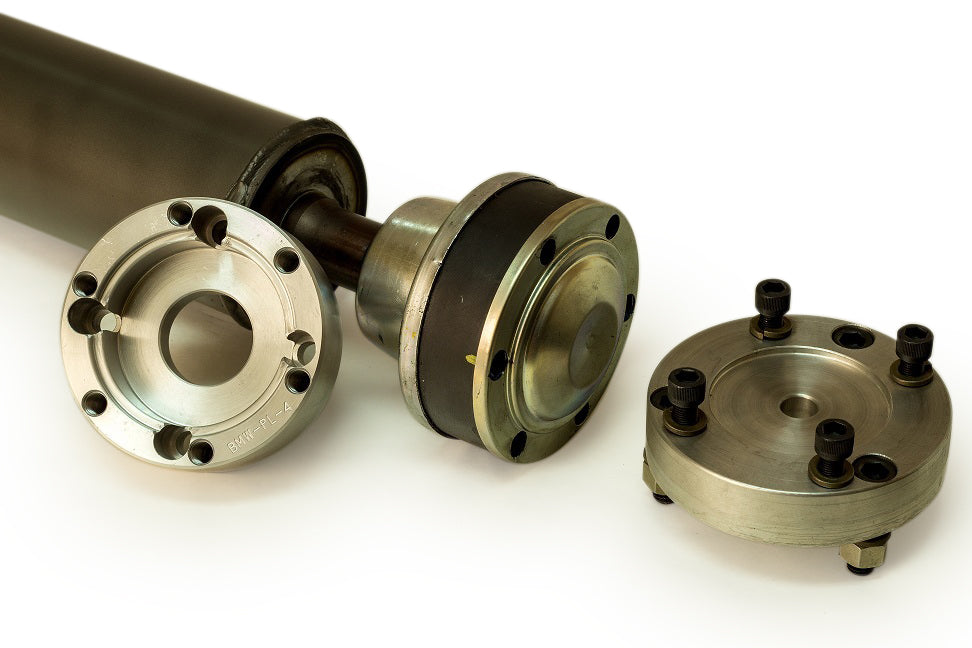

This is our 1-piece conversion for the BMW E36 platform. The shaft is made from 3" x .083" DOM tube with a 108mm CV to mount to the differential, which will eliminate any possible pinion angle issues. This shaft weighs 25lbs and since we are removing the hanger bearing, it will make the car seem more athletic and give it a smoother power transfer. We would have liked to offer an aluminum version, but for strength it would have to be made in 3.5" diameter which is too large to fit without a clearance issue. We do offer a Carbon Fiber version also, part number BMWSH1-CV-C. This shaft is now being balanced on our new 9500RPM balancer to ensure a perfectly balanced shaft. Comes complete with adapter plates to mount up to the transmission and differential flanges and all necessary hardware for installation.
Please Note: The E36 M3 uses either a 4-bolt or 6-bolt rear differential flange. This driveshaft is for the 4-bolt rear differential ONLY. If you're vehicle has a 6-bolt rear flange,
Additional Information
- Weight: 45 lbs
- Dimensions: 69 × 6 × 6 in
