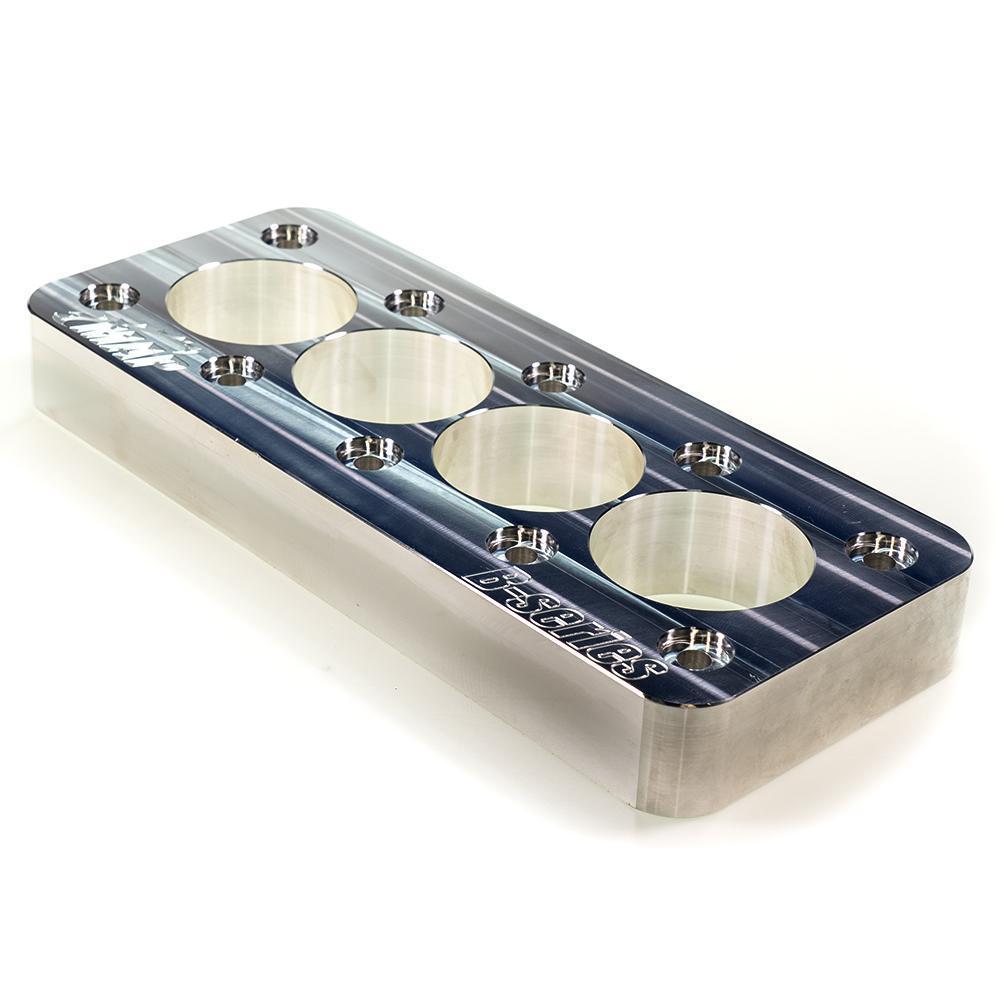

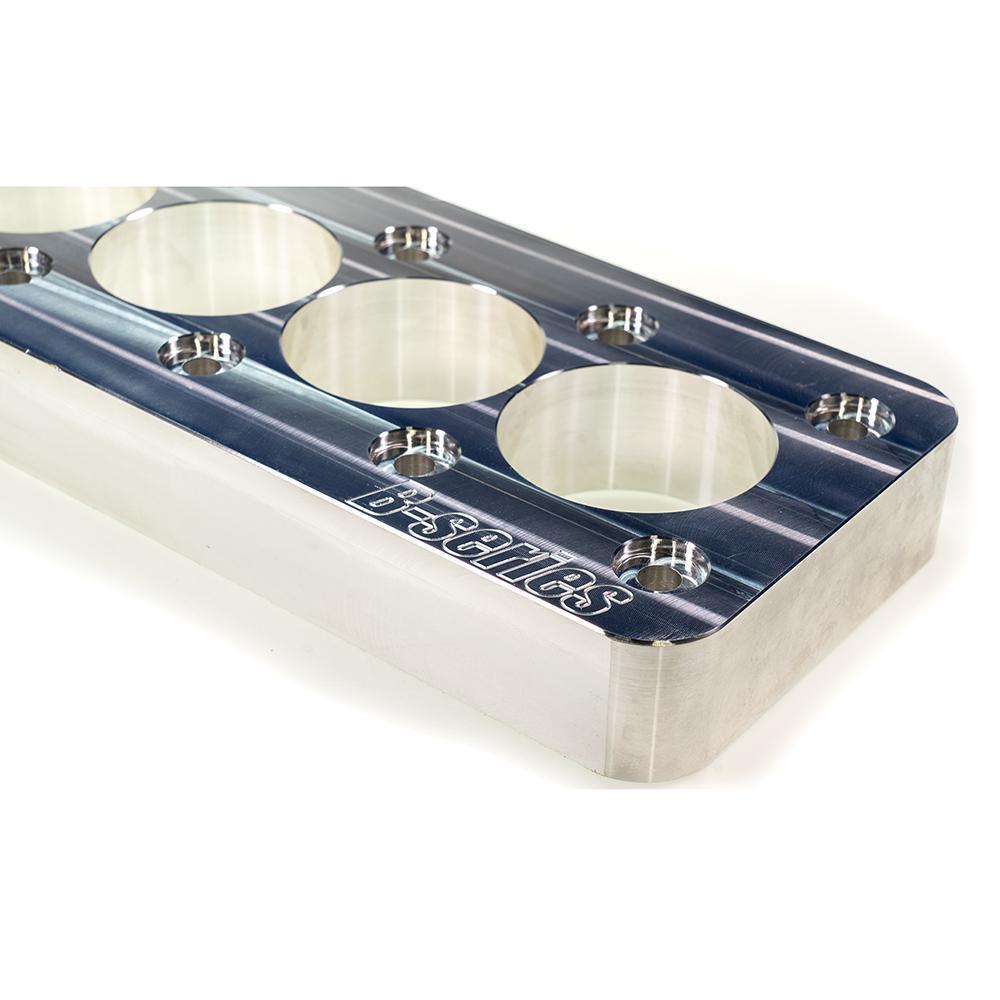

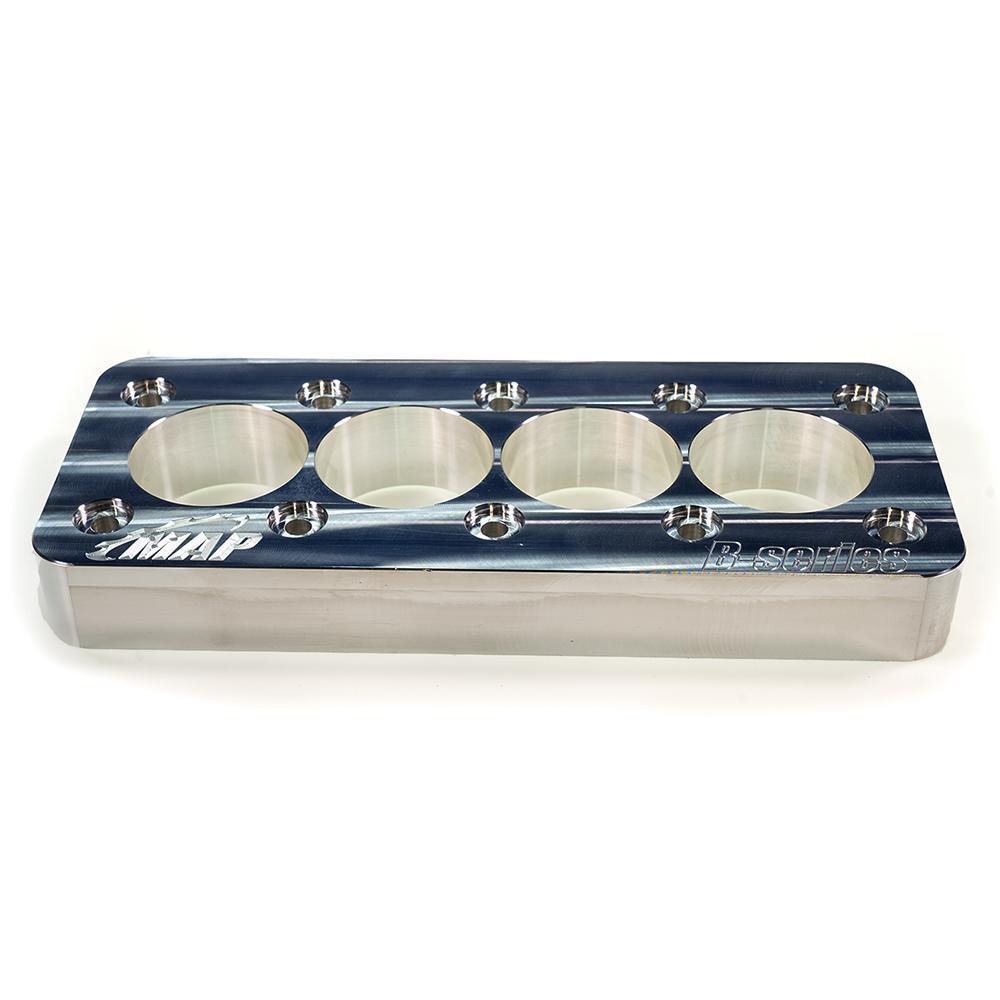

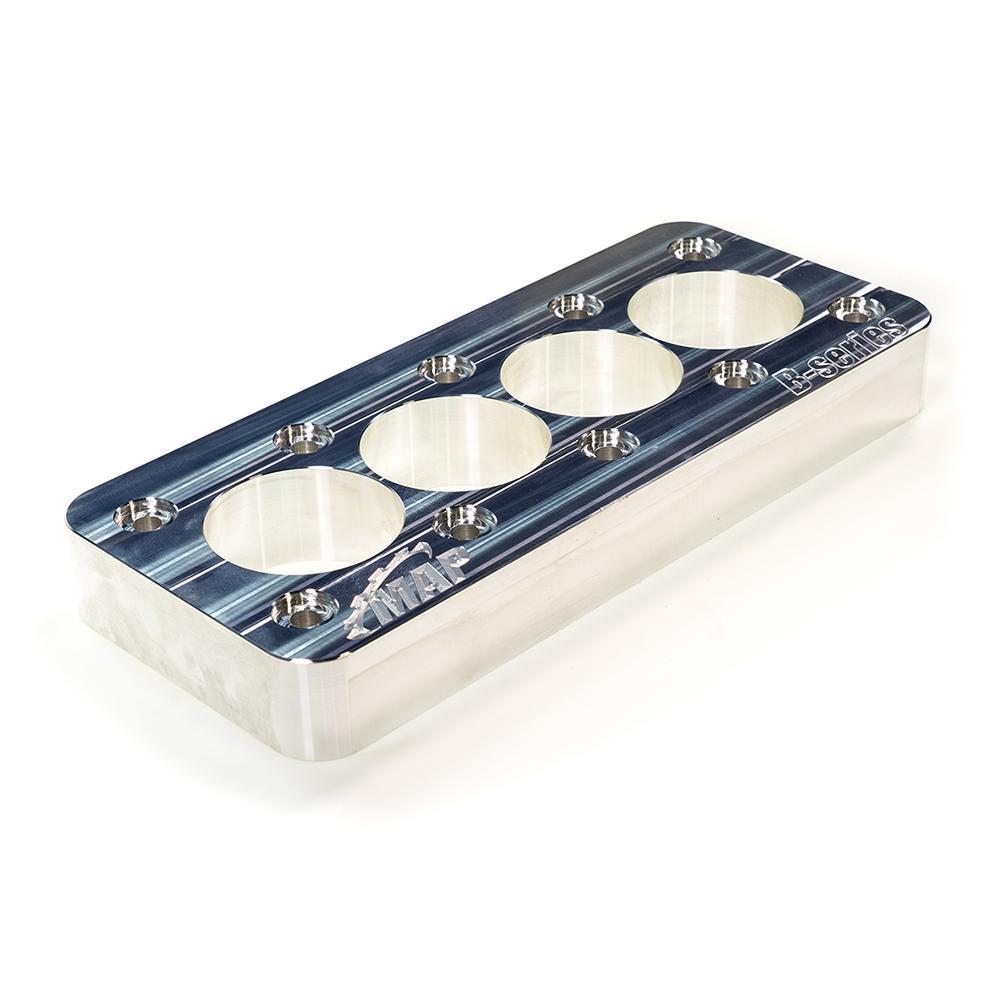

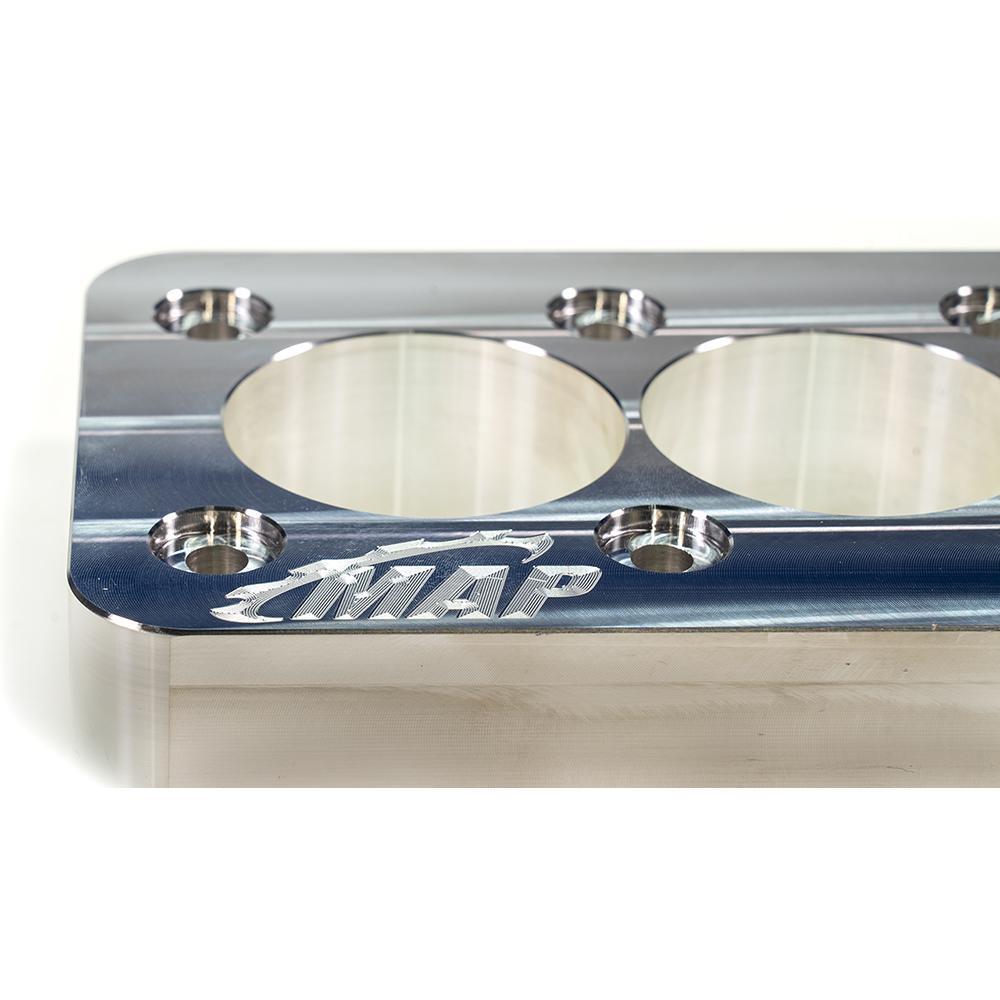

Honda B-Series Torque Plate by MAPerformance
MAPerformance Torque Plate for Honda B-Series Engines
A torque plate is essential during any boring or honing process. When you torque a head down on the block, the pressure from the bolts will cause the cylinder bore to slightly deform.
A torque plate takes the place of the head during machining to simulate any distortion that will be caused when the head studs/bolts are tightened. Using a torque plate while boring and/or honing removes any bore irregularities and enables a true cylindrical shape, while allowing the machine operator access to the bores.
Features
- High Quality 2" Thick Billet Aluminum Construction
- Includes Spacers To Give Proper Depth Of Penetration Into The Block
- Total Thickness Including The Spacers Is 2.975"
- Works With A Wide Range Of Bore Sizes
- 86mm Maximum Bore Size
- 100% Made Right Here In The USA
Benefits
- Protects Against Distortions Typically Caused By Boring Or Honing Processes
- Enables A True Cylindrical Shape While Allowing Access To The Bores
Please Note: Must use GSR length head studs such as ARP 208-4303. We also recommended tightening the nuts in three equal steps to 80 ft/lbs with ARP ultra-torque lubricant.
Applications
- Honda B-Series Engines
What's In The Box?
- 1 - Honda B-Series Torque Plate
- 10 - Torque Plate Standoffs
Warranty
- MAP Limited Lifetime Warranty
